■ Ultra-Compact Size, Perfect for 1/28 Scale

This product is an ultra-compact receiver perfectly suited for small 1/28 scale chassis. By pairing it with the high-performance EX-NEXT, you can control your machine with the ultimate XT-compliant feeling that KOPROPO is proud to deliver.

*Advance Mode is not supported. Please use Telemetry Mode.

*Designed exclusively for Telemetry Mode, but bi-directional communication is not supported. Therefore, the LED on the EX-NEXT paired with this product will flash alternately in blue and red. This is normal operation and not an error.

*Due to the lack of bi-directional communication support, the following features are unavailable:
    > RESP (Response Mode Changes / HCS)
    > RELICS (Real-Time ICS Setting Changes)
    > BT F/S (Battery Fail-Safe)



■ KR-243XT Ports

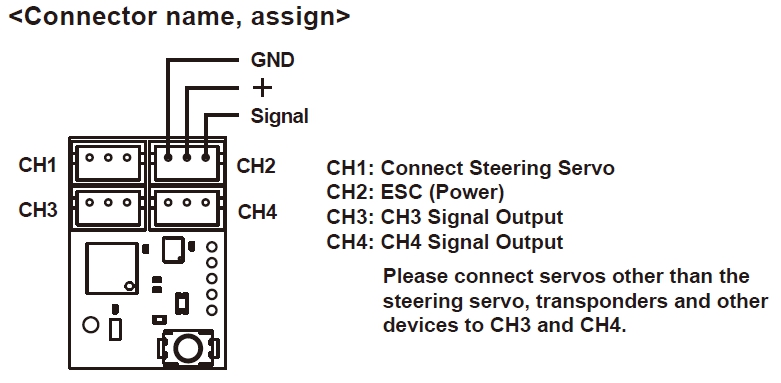

The diagram below shows the ports of the KR-243XT. It features 4 ports in total, utilizing ZH connectors, which are widely used in 1/28 scale equipment. You can connect commercially available 1/28 scale RC car servos and ESCs to each port. Additionally, you can connect a transponder to CH3 or CH4 for power supply.

*Exclusively for PWM. Devices with a neutral pulse of 1.5 msec can be used, but operation with all equipment is not guaranteed. Please check the specifications of each device with their respective manufacturers.

*Serial and HCS are not supported.

*Analog servos are not supported.

*The total current consumption of connected devices (servos, etc.) must be 4A or less. When drawing power from the ESC, ensure that the servo's current consumption does not exceed the maximum current supply capacity of the ESC.



Transmitter Sets

In addition to the standalone receiver, we also offer a set that includes the EX-NEXT transmitter and KR-243XT receiver.

EX-NEXT BASIC w/KR-243XT(for 1/28)



EX-NEXT BASIC w/KR-243XT(for 1/28) Double Receiver



EX-NEXT LDT BASIC w/KR-243XT(for 1/28)



EX-NEXT LDT BASIC w/KR-243XT(for 1/28) Double Receiver





[Please Note]

This receiver is designed and manufactured specifically for 1/28 scale vehicles. Use in any other category is not recommended.

Receiver main unit x1
Double-sided tape x1
