EX-2 Expert Set
End of production
#Weight: 528g ( Not included battery)
#Current: 150mA RO3/AAA/UM4 battery x 4
#Using time: 6hours ( It may change by a kind of battery in use.）
#20 Model Memories.
#Micro receiver KR-413FH included.
#Other Compatible receivers: KR-415FHD,KR-241FH,KR-211FH,KR-212FHG.
Made in Japan.
Included KR-413FH receiver in Expert set.
Response of KR-413FH receiver is 4 times faster than KR-241FH which is a receiver included in standard edition. Antenna is shield type which is good for the anti noise performance.
Included Drop extension in Expert set.
Light weight and compact Drop Extension Unit is equipped for steering.
The position of lower gravity, near to the throttle trigger makes you feel better handling.
Included Expert Grip in Expert set.
Expert grip is same as using to EX-1.
You can use ET lever and Dial for control function.
High performance CPU &2.7inch LCD
Using a similar CPU to the EX-1 provides a super linear and fast response. Each menu is displayed like an icon to make it easy to search and the new menu tree is useful for setting up to 20 vehicles.
Two LCD Positions90 Degrees Conversion
The LCD screen can be placed in two directions for a preferred viewing position.
Compact and Light Weight Master Unit
The Master Unit is lighter and the re-newed design achieves a new weight balance. The EX-2 is very compact and light weight making it very useful for your use.
Trigger Position Adjustable 3D trigger feature
Using KO's unique 3D trigger and trigger position adjustment allows for comfort for all hand and finger sizes.EX-2 Short Antenna
The new short antenna design reduces obstructions and performance offered is very linear and connected to the system.
K.I.Y Optional Parts Compatible
Utilizing the Patented K.I.Y system allows for Steering Units, Grip Units, Battery Stand and Grip Pads to be used with the EX-2 as upgrades to your system.
Xpansion Manager software
You can use our xpansion software for setting.
Xpansion firmware update available
We released firmware for update function etc. You can download data file and update firmware.
Menu language is English in factory default. And we released German Menu in this site as below.
Released firmware as below: (You are able to use from these firmware. )

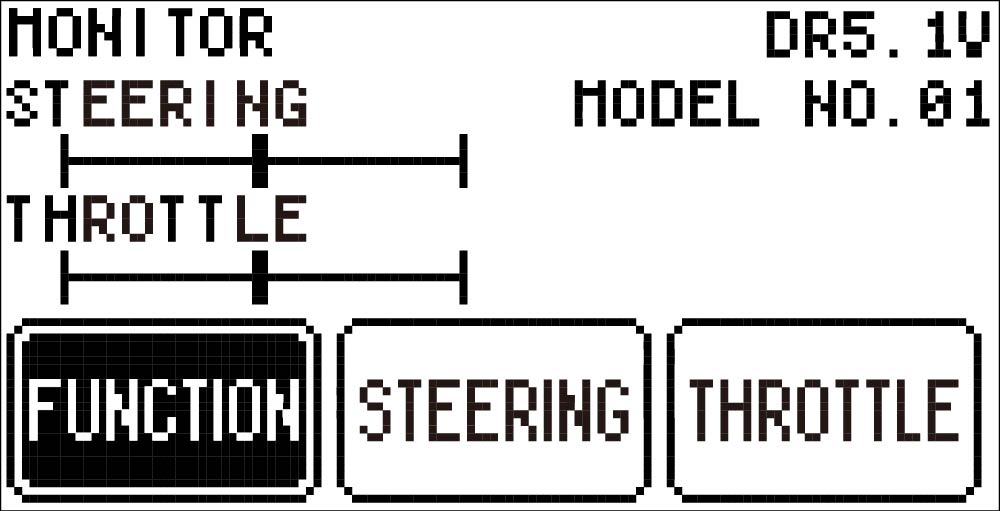

#Xpansion update Ver1.06(Screen language in English.) *This is factory setting.
Model Select/ Model Name/ Model Copy/ Model Reset
Pairing/ Modulation Setting(FH/MHS) / Key Setting / Display / Battery / Calculator / Sound / VR Information /Key Speed /Operation Alarm
Steering Auto Trim/ Steering Auto Balance/ Steering Travel/ Steering Balance/ Steering Trim / Steering Sub Trim/ Steering Trim Rate/ Steering Turn Speed/ Steering Return Speed/ Steering Curve/ Steering Punch/ Steering Feel/ Steering Reverse
Throttole Travel F/ Throttle TravelB Throttle Trim/ Throttle Sub Trim// Throttle Trim Rate/ Throttle Turn Speed/ Throttle Retun Speed/ Throllte Curve/ THrottle Punch/ Throttle Feel/ Throttle Acceralator/ ABS(auto start)/ Neutral Brake/ Idle Up/ Brake Override / Throttle Reverse
2WAY/ 3WAY / 5WAY / Analog/ Gyro / Twin Servo/ 4WS/ Amp Mixing/ Throttle Mixing
Master Unit EX-2
Drop Extension Steering Unit
Expert Grip Unit (right)
Normal Stand Unit
LCD Xpansion Unit EXP-104

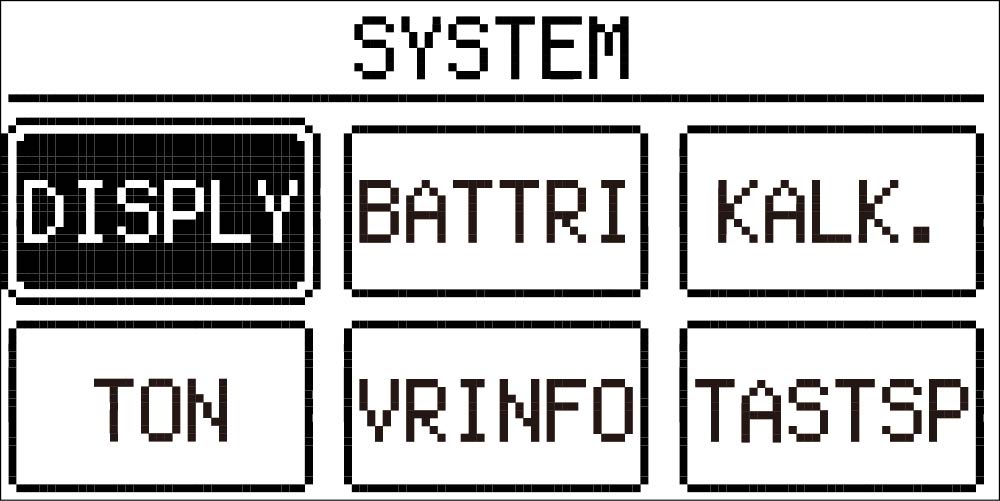

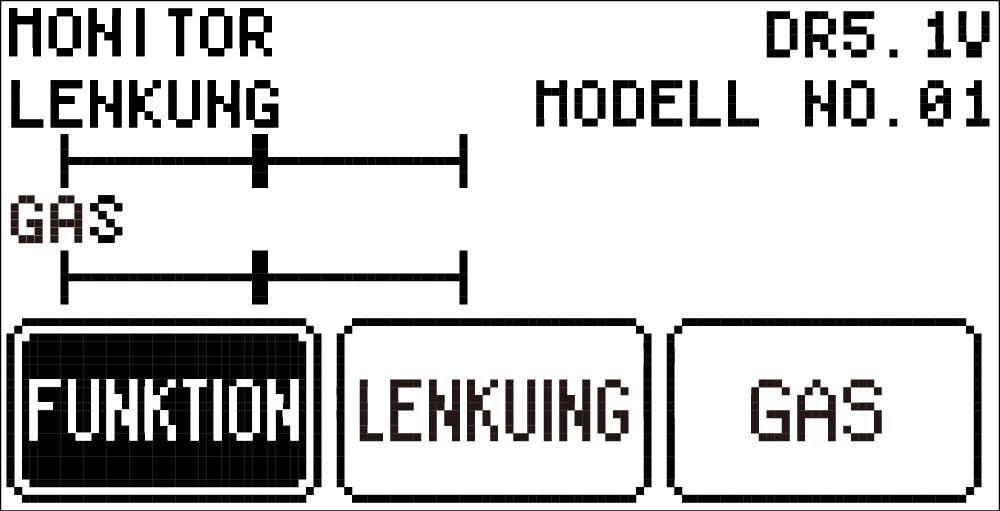

Radios ManagerXpansion Update Ver1.07 (Screen language in German)
How to update Xpansion V2.00
